MTC30-12S AC-DC醫療ITE電源模塊ARCH
發布時間：2024-04-23 08:51:38 瀏覽：4624

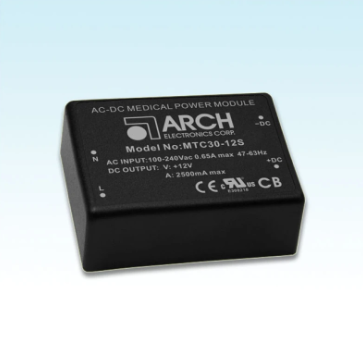

MTC30 AC-DC醫療電源模塊ARCH是一個30瓦的超緊湊型電源模塊，尺寸為2.52“ x 1.8” x
0.93“，可以安裝在PCB上。它具有通用輸入范圍90-264VAC，低空載功耗小于0.15W，并通過自然空氣對流冷卻。該模塊具有低漏電流、寬工作溫度范圍(-40°C~+80°C，降額)、低紋波和噪聲、隔離等級II，以及I/O隔離達到4000VAC。可選螺絲端子使其安裝更加方便。此外，該模塊符合UL/IEC
60950-1、UL/IEC 60601-1醫療安全認證，具有2xMOPP的醫療安全認證，并享有3年產品保修。
尺寸：2.52“ x 1.8” x 0.93“
I/P：90~264VAC
輸出：5、12、15、24 VDC
I/O 隔離：4000VAC
工作溫度：-40~ +80°C
| Model No. (Single Output) | MTC30-5S | MTC30-12S | MTC30-15S | MTC30-24S |
| Max Output Wattage (W) | 25W | 30W | 30W | 30W |
| Input | Voltage | 90-264 VAC or 120-370 VDC |
| Frequency(Hz | 47-440 Hz |
| Current (Full load | 650 mA max.(115 VAC)/400 mA max.(230 VAC) |
| nrush current (<2ms,Cold Start) | 30 Amax.(115 VAC)/60 Amax.(230 VAC) |
| Leakage Current | <0.1mA/264 VAC(Touch Current) |
| No Load Input Power (<240 VAC | <0.15W |
| External Fuse (recommend) | 3.15 A slow blow type |
| Output | Voltage (V.DC. | 5V | 12V | 15V | 24V |
| Voltage Accuracy | ±2% |
| Current (mA)ma | 5000 | 2500 | 2000 | 1250 |
| Line Regulation (LL-HL)(typ. | ±0.5% |
| Load Regulation (10-100%)(typ.) | ±1% |
| Maximum Capacitive Load (at 230 VAC) | 6800uF | 1600uF | 1200uF | 470uF |
| Ripple &Noise (max.) Note 1) | 100mVp-P | 150mVp-P | 150mVp-p | 240mNp-P |
| Eficiency (at 230 VAC | 84% | 89% | 86% | 86% |
| Hold-up Time | 10 ms min |
| Protection | Over Power Protection | Hiocup technique,auto-recovery |
| Over Voltage Protection | Zener diode clamp |
| Short Circuit Protection | Hiocup mode (automatic recovery |
| solation | nput-Output (V.AC) | 4000V |
| Environment | Operating Temperature | 40°℃…+80°℃(with derating |
| Storage Temperature | 40°℃…+90°℃ |
| Max Case Operating Temperature | 84℃ |
| Temperature Coefficient | ±0.05%C |
| Altitude During Operation | 5000m |
| Humidity | up to 95%RH |
| MTBF | >250,000 h@25°C(MIL-HDBK-217F) |
| Atmospheric Pressure | 540 hPa to 1060 hPa |
| Physical | Dimensions (Lx WxH | 2.52x1.8x0.93 Inches(64.1x45.6x23.5mm)
Tolerance ±0.5 mm,Height Tolerance±1 mm |
| Case Material | Plastic resin (flammability to UL 94V-0) |
| Weight | 135 g |
| Cooling Methoc | Free air convection |
| Safety | Approva | cUL/UL Standard:
UL 60950-1,CAN/CSA C22.2 No.60950-1-07
ANSUAAMI ES60601-1 (2005+C1:09+A2:10),CAN/CSA-C22.2 No.60601-1
(2008).2x MOPP
CB Standard
IEC 60950-1:2005 (2nd Edition)+Am 1:2009+Am 2:2013
EC 60601-1:2005(3rd Edition)+CORR.1 (2006)+CORR.2 (2007)+AM1
2012)or IEC 60601-1 (2012 reprint),2x MOPP |
| EMC | Conducted and radiated EM | EN55011 class B (Radiation Class A for MTC30 A2 Series) |
| EMS | EN60601-1-24th edition |
