Features
470 – 860 MHz
Low Loss
High Isolation
Tight Amplitude Balance
90 deg Quadrature
Surface Mountable
CTE Matched
NMT, DTV Band
Tape and Reel Option
Specifications

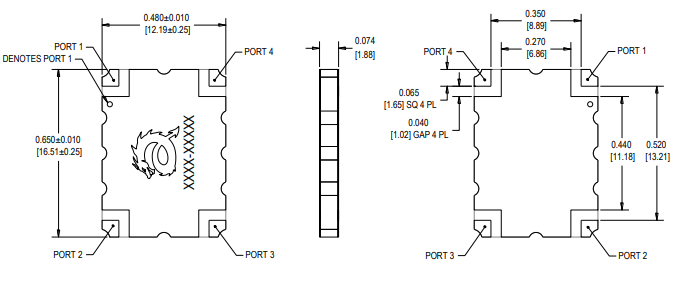

Size: .650 x .480 inches
Frequency: 470-860 MHz
Power: 175 W
Insertion Loss: .20 dB
Amplitude Balance: ± .5
Isolation: 23 dB
VSWR: 1.18
Phase Balance: ± 2
