960-1220 MHz Directional Coupler
The Q20HE-1090R is a broadband, bi-directional coupler with high directivity and high power handling. It is suitable for LTE mobile broadband, UHF television, GSM, and more…
Specifications

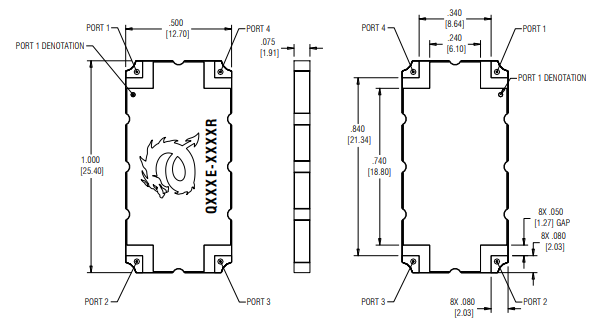

Size: 1.00 x 0.50 inches
Frequency: 0.96 – 1.22 GHz
Coupling: 20 dB ± 1 dB
Coupling Flatness: ± 0.5 dB
Directivity: 20 dB
VSWR: 1.2:1
Insertion Loss: 0.15 dB
Power: 400 W
Evaluation board 722-0006-05-E01
