2500-4500 MHz Directional Coupler
The Q10HF-3500S is a bi-directional coupler with high directivity and high power handling.
Specifications

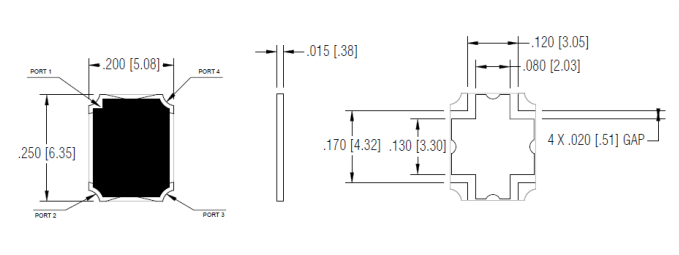

Size: 0.250 x 0.200 inches
Frequency: 2.5 – 4.5 GHz
Coupling: 10 dB ± 1.5 dB
Directivity: 16dB
VSWR: 1.2:1
Insertion Loss: 0.3 dB
Power: 150 W
Evaluation board 722-0006-01-E01
