1800-2700 MHz Directional Coupler
The Q20HF-2250S is a bi-directional coupler with high directivity and high power handling.
Specifications

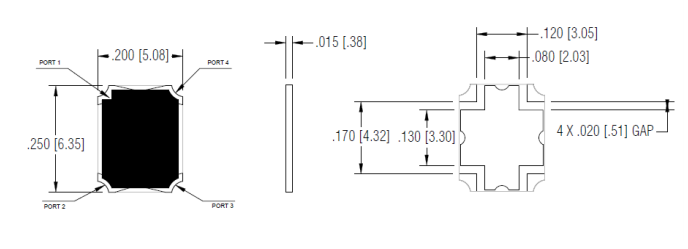

Size: 0.250 x 0.200 inches
Frequency: 1.8 – 2.7 GHz
Coupling: 20 dB ± 1.25 dB
Directivity: 16dB
VSWR: 1.15:1
Insertion Loss: 0.2 dB
Power: 150 W
Evaluation board 722-0006-01-E01
