產品詳情介紹

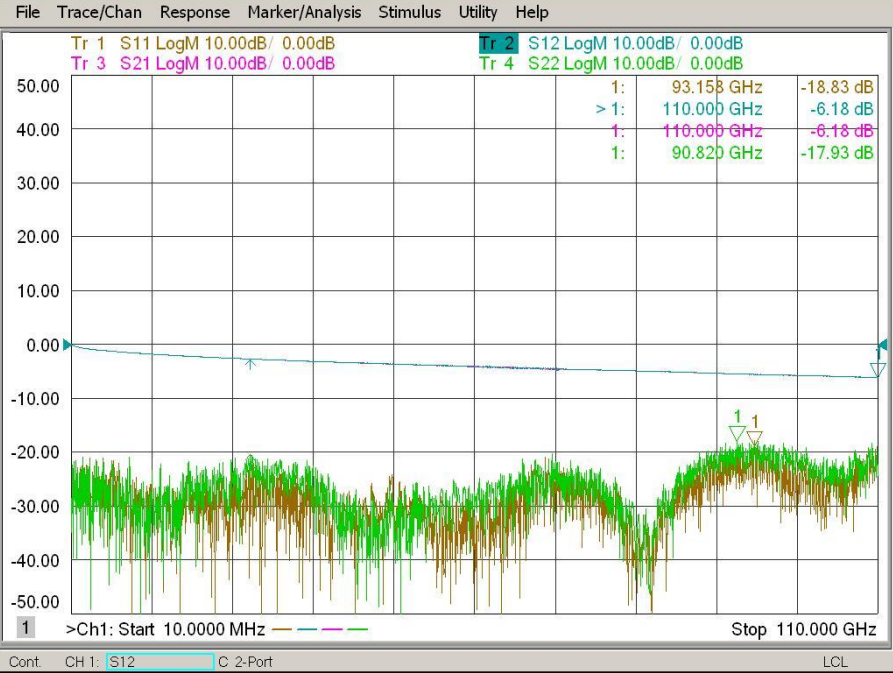

0.5m線長測試

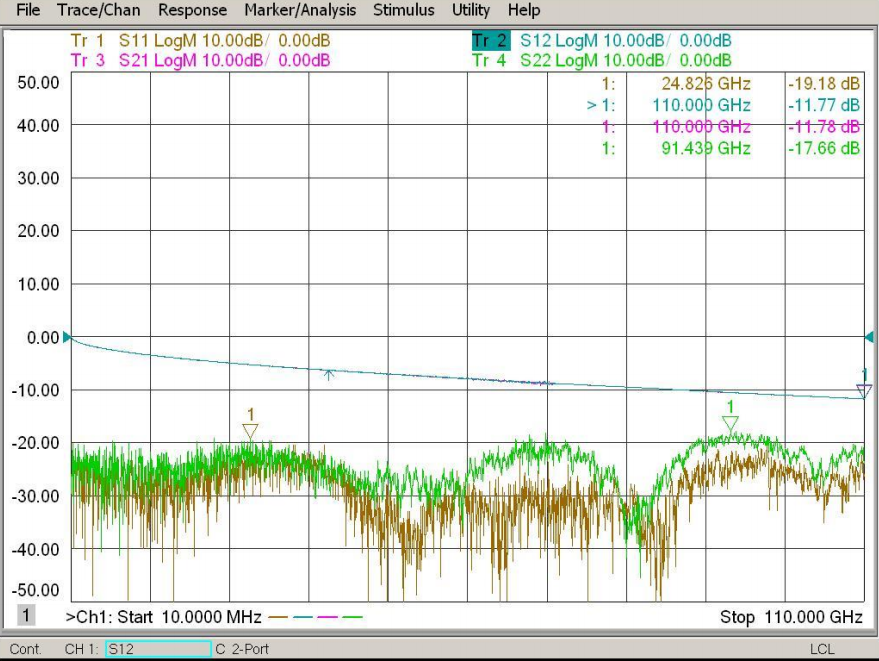

1m線長測試
Impedance:50 Ohm
VSWR(Max): 1.4
Amplitude stability(dB) : <± 0.2
Phase stability (degree): <± 7.0
Attenuation (dB/M) : 10.0 @ 110 GHz
Velocity of propagation(%) :80
Bending radius(Min) :20mm
Connector:1.0mm
Operating Temperature (℃) :- 55 to +125
*可以提供實驗室測試報告，三年質保。
