7000-12000 MHz Directional Coupler
The Q10HA-9500R is a broadband,
bidirectional coupler with high directivity and high power handling.
Specifications

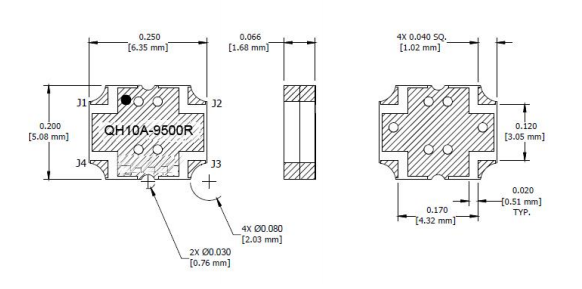

Size: 0.250 x 0.200 inches
Frequency: 7 – 12 GHz
Coupling: 12 dB ± 1.25 dB
Directivity: 14 dB
VSWR: 1.4:1
Insertion Loss: 0.5 dB
Power: 20 W
Evaluation board 722-0006-01-E01
