產品詳情介紹

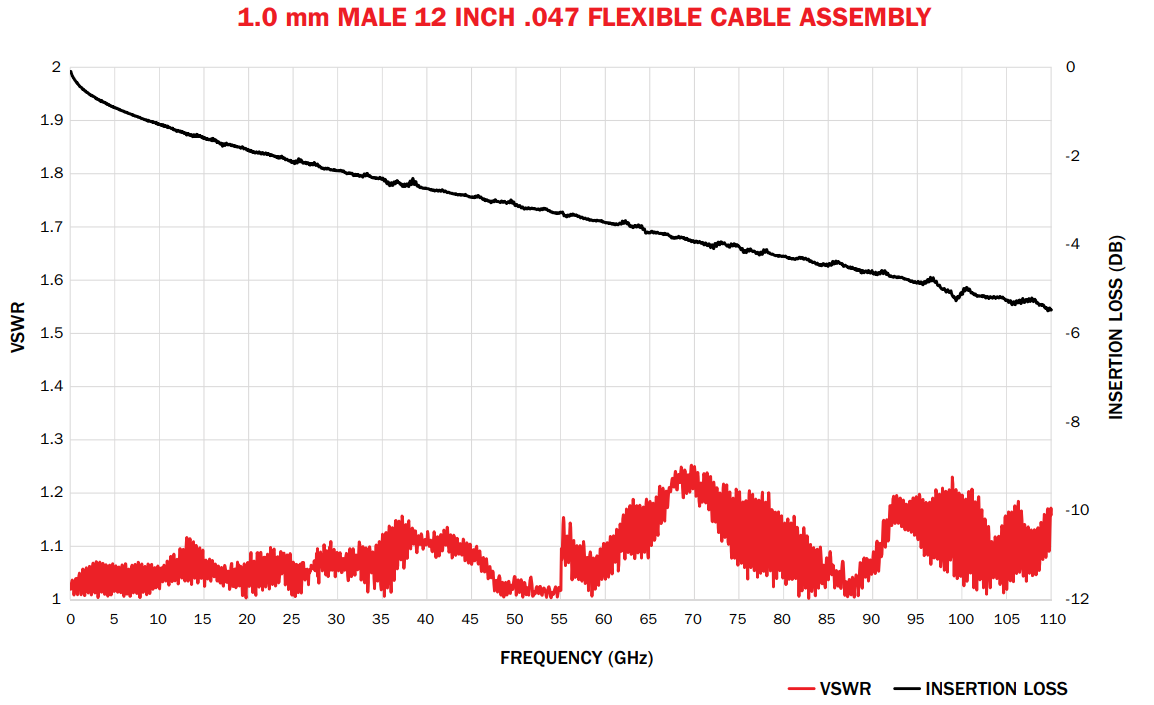

測試用110GHz毫米波適配線纜2430-00SF 電纜組件由毫米波連接器配接相應的電纜，使用頻率為DC-110GHz，具有頻帶寬、高頻性能好、損耗低、連接可靠等特點。由于毫米波連接器采用空氣界面, 螺紋連接, 具有體積小、重量輕, 產品可以實現互連等優點，所以DC-110GHz毫米波系列電纜組件被廣泛應用于微波測量及空間位置復雜，且性能要求較高的場合。
線纜產品選型如下：
| 1.85 mm (V) to 1.0 mm (W) Adapters (67 GHz) | |
| 1.85 mm (F) to 1.0 mm (F): | 182410-00SF |
| 1.85 mm (F) to 1.0 mm (M): | 182420-00SF |
| 1.85 mm (M) to 1.0 mm (F): | 182430-00SF |
| 1.85 mm (M) to 1.0 mm (M): | 182440-00SF |
| 1.0 mm (W) to 0.9 SuperMini (67 GHz) | |
| 1.0 mm (F) to 0.9 SuperMini (M): | 245220-00SF |
| 1.0 mm (F) to 0.9 SuperMini (F): | 245310-00SF |
| 1.0 mm (W) to SSBP Coax Contacts (110 GHz) | |
| 1.0 mm (F) to SSBP Coax Contacts (F): 195020-01G | 195020-01G |
| 1.0 mm (F) to SSBP Coax Contacts (M): 195110-01G | 195110-01G |
| 1.0 mm (W) Adapters (110 GHz) | |
| 1.0 mm (F) to 1.0 mm (M): | 2430-00SF |
| 1.0 mm (M) to 1.0 mm (M): | 2431-00SF |
| 1.0 mm (F) to 1.0 mm (F): | 2432-00SF |
