?CINCON磚式 DC-DC 轉換器

發布時間：2022-12-09 16:43:11 瀏覽：770

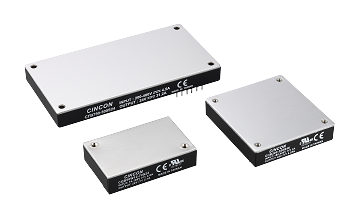

CINCON是經驗豐富的DC/DC轉換器制造廠商，CINCON的DC-DC選用磚式電源和轉換器，提供標準規范的四分之一、半磚和全磚尺寸。CINCON的DC/DC磚設置在印刷線路板上，具備輸入電壓范圍廣、隔離防護、輸出電壓穩定性、效率更高、保護全方位等特性。

四分之一的磚尺寸，CINCON有50W到150W最率密度最高，輸入范圍最大寬度12:1。半磚尺寸，CINCON有50W到350W最率密度最高，輸入范圍最大寬度12:1。全磚尺寸，CINCON有400W到800W最率密度最高，輸入范圍最大寬度4:1。

CINCON不僅提供標準DC-DC磚式轉換器還提供了即插即用DC-DC轉換器模塊，CMFC/CMFD系列產品，內嵌EMI解決方案，幫助客戶處理不愉快的情況EMC問題。CINCON為了減少客戶的研發時間，提供具體的應用闡述當作指導工具。

深圳市立維創展科技是CINCON電源模塊的代理經銷商，提供CINCON電源模塊的DC-DC轉換器、AC-DC電源、LED電源等，產品原裝進口，質量保障，極具價格優勢，歡迎咨詢

詳情了解CINCON電源請點擊：http://www.yzgnjsb.cn/article/2177.html

12:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQB50W12	50W	14~160V	5V, 12V, 24V, 48V	3KVdc Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB150W12	150W	14~160V	5V, 12V, 15V, 24V, 48V	3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CHB200W12	200W	14~160V	12V, 15V, 24V, 48V	3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)

8:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQB50W8	50W	9~75V	12V, 15V, 24V, 28V, 48V	3KVac Isolation UL62368 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CQB75W8	75W	9~75V	12V, 15V, 24V, 28V, 48V	3KVac Isolation UL62368 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB150W8	150W	9~75V	12V, 15V, 24V, 28V, 48V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)

4:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQE50W	50W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×1.45x0.50 (Quarter Brick)
CHB50W	50W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB60W-110S	60W	43~160V	12V, 15V, 24V, 28V, 48V, 5V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CQB75W	75W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×1.45x0.50 (Quarter Brick)
CHB75W	75W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB100W	100W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×1.45x0.50 (Quarter Brick)
CQB100W-110S	100W	43~160V	12V, 15V, 24V, 28V, 48V, 5V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB100W	100W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CHE100W	100W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 48V, 5V	1.5KVDC Isolation	2.28×2.40x0.50 (Half Brick)
CQB150W	150W	18~75V, 9~36V	12V, 15V, 24V, 28V, 48V, 5V	2250Vdc Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CQB150W-110S	150W	43~160V	3.3V, 5V, 12V, 15V, 24V, 28V, 48V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB150W	150W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.52 (Half Brick)
CHB200W	200W	10~36V, 18~75V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.52 (Half Brick)
CHB200W-110S	200W	43~160V	5V, 12V, 24V, 28V, 48V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CHB300W	300W	18~75V, 9~36V	12V, 15V, 24V, 28V, 48V, 5V	1.5KVDC Isolation UL62368-1	2.28×2.40x0.50 (Half Brick)
CHB300W-110S	300W	43~160V	12V, 24V, 28V, 3.3V, 48V, 5V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CFB400W	400W	18~75V, 9~36V	12V, 24V, 28V, 48V, 5V	1.5KVDC Isolation UL60950-1	4.60×2.40x0.50 (Full Brick)
CFB600W-110S	600W	43~160VDC	12V, 24V, 28V, 48V	2250Vdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	4.60×2.40x0.50 (Full Brick)

2:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CHB50	50W	18~36V, 36~75V, 9~18V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB75-300S	75W	180~450V	12V, 15V, 24V, 3.3V, 48V, 5V	3KVAC Isolation UL62368-1 & CB	2.28×1.45x0.50 (Quarter Brick)
CHB75	75W	18~36V, 36~75V, 9~18V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB100-110S	100W	66~160V	12V, 24V, 3.3V, 5V	2250Vdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB100	100W	18~36V, 36~75V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CHB100-110S	100W	66~160V	12V, 15V, 24V, 48V	3KVac Isolation EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CQB150-300S	150W	180~425V	12V, 15V, 24V, 28V, 48V, 5V	3KVAC Isolation UL62368-1 & CB	2.28×1.45x0.50 (Quarter Brick)
CHB150	150W	36~75V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CHB150-110S	150W	66~160V	12V, 24V, 5V	2250Vdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CQB200	200W	18~36V	24V, 28V	2250Vdc Isolation UL62368-1 EN45545-2	2.28×1.45x0.50 (Quarter Brick)
CHB300-300S	300W	180~425V	12V, 24V, 28V, 48V, 5V	3KVAC Isolation UL60950-1 & CB	2.28×2.40x0.50 (Half Brick)
CHB350	350W	18~36V, 36~75V	12V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 2.28×2.40x0.52 (Half Brick)
CFB600	600W	18~36V, 36~75V	12V, 24V, 28V, 32V, 48V	1.5KVDC Isolation UL62368-1	4.60×2.40x0.50 (Full Brick)
CFB600-300S	600W	180~425V	12V, 24V, 48V	3KVAC Isolation UL60950-1	4.60×2.40x0.50 (Full Brick)
CFB750-300S	750W	200~425V	12V, 15V, 24V, 28V, 36V, 48V	3KVAC Isolation	4.60×2.40x0.50 (Full Brick)
CFB800	800W	18~36V	28V	1.5KVDC Isolation	4.60×2.40x0.50 (Full Brick)
