?RF-LAMBDA壓控移相器
發布時間：2023-07-11 16:47:18 瀏覽：1671
移相器是種最常見的電源電路，能夠?qū)⒛M輸入的相位移動相應方向，從而實現了信號的功率濾波、調制、解調等作用。移相器工作原理是通過RC電路的相位差性能，通過調節電容或電阻數值來調整電源的相位差，從而實現了相位移動的目的。
RF-LAMBDA壓控移相器具備無限相位設計的電壓可變寬帶移相器，能夠?qū)λ猩漕l微波相位實施微調。
特性
?寬帶使用350-450MHz
?360°相移
?低插入損耗和低相位偏移
?單調操控應用
典型應用
?測試和測量
?國防軍事和航天工程
?研制開發
深圳市立維創展科技是RF-LAMBDA的經銷商， RF-LAMBDA的產品包括：無源控制模塊，有源控制模塊，寬帶功率放大器，窄帶PA和驅動放大器，產品生產線均根據美國軍用設計標準與生產制造，逐步廣泛運用于航天，航空，軍用設備，衛星通訊，雷達等高端工程項目。
詳情了解RF-LAMBDA請點擊：http?: //www.yzgnjsb.cn/public/brand/3.html
Part Number | "Frequency Range " (GHz) | Degree | Bandwith | VSWR | Insertion Loss (dB) | Power (W) | Voltage | Packaging |
RVPT0003MAC | 0.06~0.08 | 180° | Full | 1.50 | 3.00 | 0.10 | DC-15 | Coaxial |
RVPT0117MBC | 0.07~0.10 | 360° | Full | 2.00 | 4.00 | 0.10 | DC-20 | Coaxial |
RVPT0120MBC | 0.10~0.14 | 360° | Full | 2.00 | 4.00 | 0.10 | DC-20 | Coaxial |
RVPT0117MAC | 0.01~0.17 | 180° | 30% | 1.60 | 1.50 | 0.10 | DC-20 | Coaxial |
RVPT0117MBD | 0.01~0.17 | 360° | 30% | 2.00 | 4.00 | 0.10 | DC-20 | Coaxial |

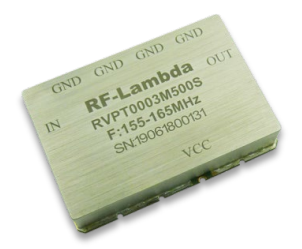

RVPT0003M500S | 0.16~0.17 | 500° | Full | 1.60 | 4.50 | 0.10 | DC~12 | Surface Mount |
RVPT0117MCC | 0.13~0.17 | 360° | Full | 2.00 | 5.00 | 1.00 | DC~10 | Coaxial |
RVPT1725MAC | 0.17~0.25 | 180° | Full | 2.00 | 3.00 | 0.10 | DC-20 | Coaxial |
RVPT1725MBC | 0.17~0.25 | 360° | Full | 2.00 | 4.00 | 0.10 | DC-20 | Coaxial |
RVPT0003MAS | 0.01~0.30 | 180° | 10% | 1.60 | 1.50 | 0.20 | 0-15 | Surface Mount |
RVPT0003MBS | 0.01~0.30 | 360° | 10% | 1.60 | 3.00 | 0.20 | 0-15 | Surface Mount |
RVPT396M406MBC | 0.40~0.41 | 360° | Full | 2.00 | 3.50 | 0.50 | 0~15 | Surface Mount |
RVPT350M450MBC | 0.35~0.45 | 360° | Full | 1.60 | 5.00 | 0.50 | 0~10 | Surface Mount |
RVPT0205MAC | 0.25~0.50 | 180° | Full | 2.00 | 3.00 | 0.10 | DC-20 | Coaxial |
RVPT0205MBC | 0.25~0.50 | 360° | Full | 2.00 | 4.00 | 0.10 | DC-20 | Coaxial |
RVPT0501GAC | 0.50~1.00 | 180° | Full | 2.00 | 3.00 | 0.10 | DC-20 | Coaxial |
RVPT0501GBC | 0.50~1.00 | 360° | Full | 2.00 | 4.00 | 0.10 | DC-20 | Coaxial |
RVPT1000MBSB | 0.90~1.05 | 180 | Full | 1.50 | 5.00 | 0.20 | DC~12 | Surface Mount |
RVPT0102GAC | 1.00~2.00 | 180° | Full | 2.00 | 3.00 | 0.10 | DC-20 | Coaxial |
RVPT0102GBC | 1.00~2.00 | 360° | Full | 2.00 | 4.00 | 0.10 | DC-20 | Coaxial |
RVPT0302GAS | 0.30~2.00 | 180° | 10% | 2.00 | 2.00 | 0.20 | 0-15 | Surface Mount |
RVPT0302GBS | 1.00~2.00 | 360° | Full | 2.50 | 4.00 | 0.20 | 0-10 | Surface Mount |
RVPT0204GAC | 2.00~4.00 | 180° | Full | 2.50 | 3.50 | 0.10 | DC-10 | Coaxial |
RVPT0204GBC | 2.00~4.00 | 360° | Full | 2.50 | 5.00 | 0.10 | DC-13 | Coaxial |
RVPT0204GBC-D | 2.00~4.00 | 360° | Full | 2.80 | 5.50 | 0.05 | DC-10 | Surface Mount |
RVPT0207GAC | 2.00~7.00 | 180° | Full | 2.50 | 2.50 | 0.20 | 0-14 | SMA |
RVPT0408GAC | 4.00~8.00 | 180° | Full | 2.50 | 4.50 | 0.10 | DC-10 | Coaxial |
RVPT0408GBC | 4.00~8.00 | 360° | Full | 2.00 | 8.00 | 0.10 | DC-13 | Coaxial |
RVPT0313GAC | 3.00~13.00 | 180° | Full | 2.50 | 3.00 | 0.10 | 0-13 | SMA |
RVPT0818GAC | 8.00~18.00 | 180° | Full | 2.50 | 8.00 | 0.10 | DC-10 | Coaxial |
RVPT1218GAC | 12.00~18.00 | 180° | Full | 2.50 | 6.00 | 0.10 | DC-10 | Coaxial |
RVPT0818GBC | 8.00~18.00 | 360° | Full | 2.50 | 8.00 | 0.10 | DC-13 | Coaxial |
RVPT0618GAC | 6.00~18.00 | 180° | Full | 3.00 | 5.00 | 0.10 | 0-15 | SMA |
RVPT0220GAC | 2.00~20.00 | 180° | Full | 2.50 | 7.00 | 0.10 | DC-13 | Coaxial |
RVPT1822GBC | 18.00~26.00 | 360° | Full | 2.50 | 10.00 | 0.10 | DC-15 | Coaxial |
RVPT1529GAC | 18.00~26.50 | 360° | Full | 2.50 | 3.00 | 0.10 | 0-16 | SMA |
RVPT2127GBC | 21.00~27.00 | 360° | Full | 2.50 | 14.00 | 0.10 | DC-15 | Coaxial |
RVPT2229GBC | 15.00~29.00 | 360° | Full | 2.50 | 14.00 | 0.10 | 20 | Coaxial |
RVPT2231GBC | 22.00~33.00 | 360° | Full | 2.50 | 14.00 | 0.10 | DC-15 | Coaxial |
