D-Sub混合連接器AMPHENOL

發布時間：2023-10-23 17:16:44     瀏覽：707

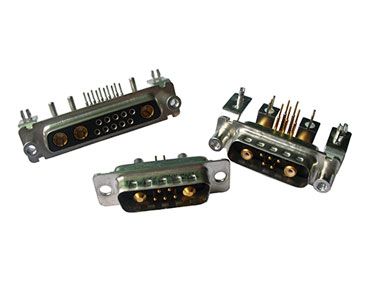

AMPHENOL TW混合D-Subminiature連接器為板端和線端連接提供普遍的端接選擇，為電纜和PCB組件提供全面性解決方案。D-Sub混合連接器端接形式包括直式和直角等板端連接及其焊杯式和鉚合（僅限于電源插針）等電纜線端連接。各種端接選擇均配有插座和插頭連接器。

D-Sub混合連接器3種封裝排列形式（歐洲標準、軍用標準和混合標準）均可應用于直角PCB端接。配接位置接觸件表面經過鍍金處置，可以根據所需要的配接頻次選擇3種基本壁厚：閃金(GoldFlash)、15μ"和30μ"。信號插針的焊接位置接觸件表面經過鍍金處置，而電源插針則根據鍍錫處置。D-Sub混合連接器提供精密零件加工版本，額定電流高至7.5A，主要用于安全可靠性較高的技術應用。高溫尼龍連接板可供客戶技術應用通孔回流焊接工藝技術。

AMPHENOLD-Sub混合連接器提供從E、A、B、C到D五種基本機殼規格，而混合連接器則對于信號、電源和同軸線提供高至18種接觸點排列。PCB配置內置穩定接觸點和支撐架。

混合D-SUBMINIATURE連接器

滿足MILC24308標準的配接端口

信號插口額定電流為7.5A，電源插頭的最大額定電流為40A

耐高溫高至260°C

接觸電阻低于5m?

對于信號、電源和同軸接觸點提供高至18種配置

機械加工接觸件安裝在絕緣體中

特性

標準D型連接器

EMI金屬機殼

插頭接地凹痕

連接板選用阻燃熱固性塑料

提供信號/電源/同軸線混合選項

提供根據不同端接形式的版本

每種端接版本均配有插座和插頭

優勢

確保準確的配接方向

主要用于需要高性能的技術應用

根據UL#232356認證

適用于高端技術應用

滿足行業標準

可適應各種客戶需求

深圳市立維創展科技代理經銷AMPHENOL公司各個領域產品系列，在AMPHENOL，AMPHENOL相信在開展業務的過程中做出可持續的選擇可以為股東創造短期和長期價值。AMPHENOL的每一項業務都致力于不斷改進其設計，采購，制造和交付產品的方式，努力滿足或超越客戶對整個價值鏈中產品管理的期望。AMPHENOL 的業務將安全和環境保護作為首要任務，并根據ISO 14001和OHSAS 18001等公認標準管理這些計劃。但是，認證和法律合規性還不夠。AMPHENOL不僅僅遵守法規就能創造長期價值。

詳情了解AMPHENOL可點擊：http://www.yzgnjsb.cn/article/1321.html


產品詳情

3D MODEL (STP)

L177TWA11W1SP3SYRM84

Dsub, Machined Hybrid, 11W1, Power (40A)&Signal (7.5A) Contacts, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power&0.76m (30 in) Signal, 4-40 Fixed Front Screwlock with Standoff and Boardlock

L177TWA3W3SC805

Dsub, Machined Hybrid, 3W3, Power (40A) Contacts Only, Socket, Soldercup Cable Mount, Bright Tin Shell, 3.05mm (.120in) Clear Hole

L177TWA3W3SMP2V4RRM6

Dsub, Machined Hybrid, 3W3, Power (20A) Contacts Only, Socket, Right Angle PCB Thru Hole Mil (U.S.) Footprint, Bright Tin Shell, 0.76m (30 in) Power, P=9.52mm (0.375in), 4-40 Threaded Rear Nut, With Bracket&Boardlock

L177TWA3W3SP2Y

Dsub, Machined Hybrid, 3W3, Power (20A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, 3.05mm (0.120in) Clear Hole, Without Standoff&Boardlock

L177TWA3W3SP2YFM

Dsub, Machined Hybrid, 3W3, Power (20A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, Float Mounting, Without Standoff&Boardlock

L177TWA3W3SP2YRM53

Dsub, Machined Hybrid, 3W3, Power (20A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, M3 Threaded Standoff (Panel Side) with Boardlock

L177TWA3W3SP2YRM54

Dsub, Machined Hybrid, 3W3, Power (20A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, 4-40 Threaded Standoff (Panel Side) with Boardlock

L177TWA3W3SP3Y

Dsub, Machined Hybrid, 3W3, Power (40A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, 3.05mm (0.120in) Clear Hole, Without Standoff&Boardlock

L177TWA3W3SP3YRM53

Dsub, Machined Hybrid, 3W3, Power (40A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, M3 Threaded Standoff (Panel Side) with Boardlock

L177TWA3W3SP3YRM54

Dsub, Machined Hybrid, 3W3, Power (40A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, 4-40 Threaded Standoff (Panel Side) with Boardlock

L177TWA3W3SP3YRM84

Dsub, Machined Hybrid, 3W3, Power (40A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, 4-40 Fixed Front Screwlock with Standoff and Boardlock

L177TWA7W2P

Dsub, Machined Hybrid, 7W2, Signal (7.5A) Contacts Only, Pin, Soldercup Cable Mount, Bright Tin Shell, 0.76m (30 in) Signal,

L177TWA7W2PP3SY

Dsub, Machined Hybrid, 7W2, Power (40A)&Signal (7.5A) Contacts, Pin, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power&0.76m (30 in) Signal, 3.05mm (0.120in) Clear Hole, Without Standoff&Boardlock

L177TWA7W2S

Dsub, Machined Hybrid, 7W2, Signal (7.5A) Contacts Only, Socket, Soldercup Cable Mount, Bright Tin Shell, 0.76m (30 in) Signal, 3.05mm (0.120in) Clear Hole

L177TWA7W2SEP3SV

Dsub Machined Hybrid 7W2 Coax&Signal

L177TWA7W2SFM

Dsub, Machined Hybrid, 7W2, Signal (7.5A) Contacts Only, Socket, Soldercup Cable Mount, Bright Tin Shell, 0.76m (30 in) Signal, Float Mounting

L177TWA7W2SHP2SV4RRM6

Dsub Machined Hybrid 7W2 Coax&Signal

L177TWA7W2SMP2SV4RRM6

Dsub Machined Hybrid 7W2 Coax&Signal

L177TWA7W2SMP3SV4RRM6

Dsub Machined Hybrid 7W2 Coax&Signal

L177TWA7W2SMP3SVRM6

Dsub, Machined Hybrid, 7W2, Power (40A)&Signal (7.5A) Contacts, Socket, Right Angle PCB Thru Hole Mil (U.S.) Footprint, Bright Tin Shell, 0.76m (30 in) Power&0.76m (30 in) Signal, P=21.46mm (0.845in) S=8.10mm (0.319in), With...

L177TWA7W2SP2SY

Dsub, Machined Hybrid, 7W2, Power (20A)&Signal (7.5A) Contacts, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power&0.76m (30 in) Signal, 3.05mm (0.120in) Clear Hole, Without Standoff&Boardlock

L177TWA7W2SP3SY

Dsub, Machined Hybrid, 7W2, Power (40A)&Signal (7.5A) Contacts, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power&0.76m (30 in) Signal, 3.05mm (0.120in) Clear Hole, Without Standoff&Boardlock

L177TWA7W2SP3SYRM54

Dsub, Machined Hybrid, 7W2, Power (40A)&Signal (7.5A) Contacts, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power&0.76m (30 in) Signal, 4-40 Threaded Standoff (Panel Side) with Boardlock

L177TWA7W2SP3SYRM84

Dsub, Machined Hybrid, 7W2, Power (40A)&Signal (7.5A) Contacts, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power&0.76m (30 in) Signal, 4-40 Fixed Front Screwlock with Standoff and Boardlock
